Mega-Coupler Black

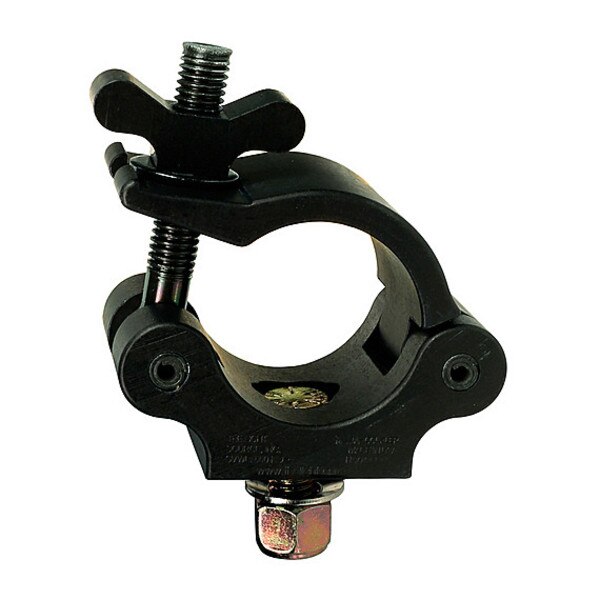

The Mega-Coupler has solid wing nut tabs that are stronger than regular steel wing nuts. The grade 8 Hex Head Cap Screw locks securely into the hex milled pocket so that the nylock nut can be tightened while the clamp is installed The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2 " OD truss tube and has the industry compatible 14 mm thick base.
Minimum Size 1.25" pipe, 1.66" OD pipe Maximum Size 1.5" pipe, 1.90" OD pipe, 2" OD truss tube Working Load Limit 1,100 lb 500kg, for 1/2" and 3/8" hardware 450 lb for 1/4" hardware Hardware Standard hardware - 1/2-13 × 1 1/4" Hex Head grade 8 zinc plated steel bolt with nylock nut 1" Belleville Washer Weight 1.14 lbs. (MLB-NN – 1.11 lbs.) (MLB3/8 – 1.07 lbs.)
